Descripción

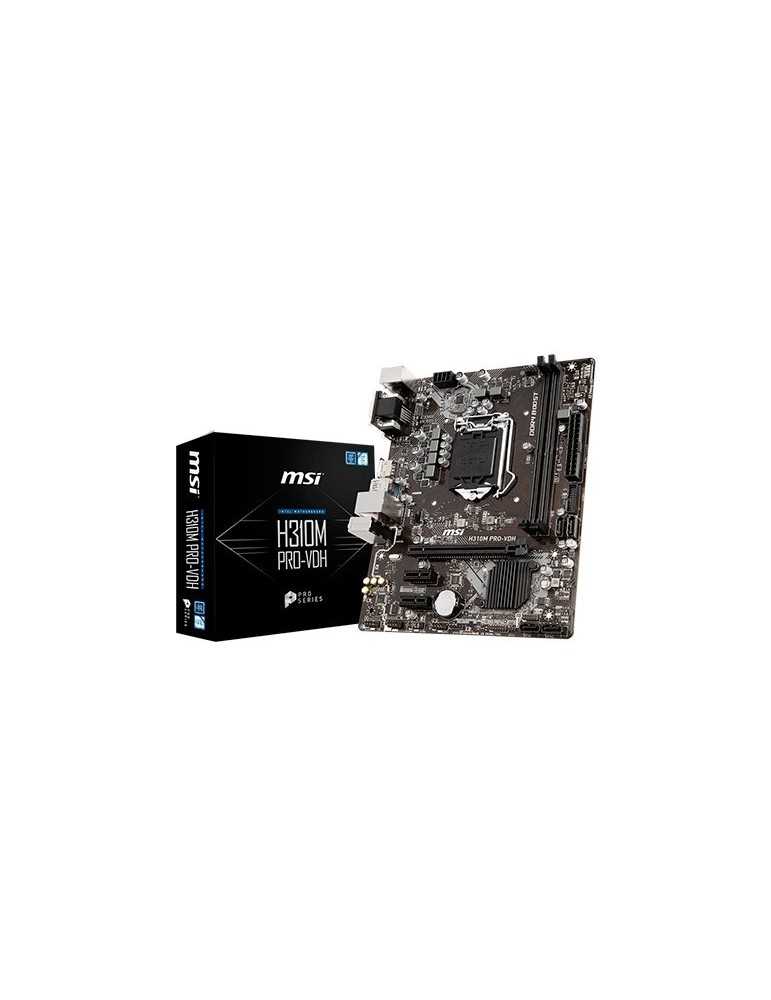

MSI H310M PRO SOCKET 1151 2XDDR4 4XSATA VGA HDM 911-7C09-013
MSI H310M PRO SOCKET 1151 2XDDR4 4XSATA VGA HDM 911-7C09-013
| Marca | Msi
|
| Part Number | 911-7C09-013/010/019
|
| Cpu | Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket |
| Chipset | Intel® H310 Chipset |
| Memoria | 2 x DDR4 memory slots, support up to 32GB
Supports DDR4 2666/ 2400/ 2133 MHz (by JEDEC)1 Supports DDR4 2666/ 2400/ 2133 (by XMP OC)1 Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Gráficos | 1 x VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz
1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz 1 x HDMI™ port, supports a maximum resolution of 4096×2160@30H |
| Audio | 7.1-Channel High Definition Audio |
| Lan | 1 x RTL8111H Gigabit LAN controller |
| Ranuras De Expansión | 1 x PCIe 3.0 x16 slot
2 x PCIe 2.0 x1 slots |
| Conectores | 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1 x Clear CMOS jumper 2 x Front panel connectors 1 x Serial port connector 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Front panel audio connector 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector |
| Panel Trasero E/s | PS/2 Combo Port
VGA Port HDMI Port USB 3.1 Gen1 LAN Port HD Audio Connectors USB 2.0 Port DVI-D Port USB 2.0 Port |
| Formato | m-ATX Form Factor
8.9 in. x 7.3 in. (22.6 cm x 18.5 cm) |
| Almacenamiento | 4 x SATA 6Gb/s ports
Supports Intel® Rapid Storage Technology |
