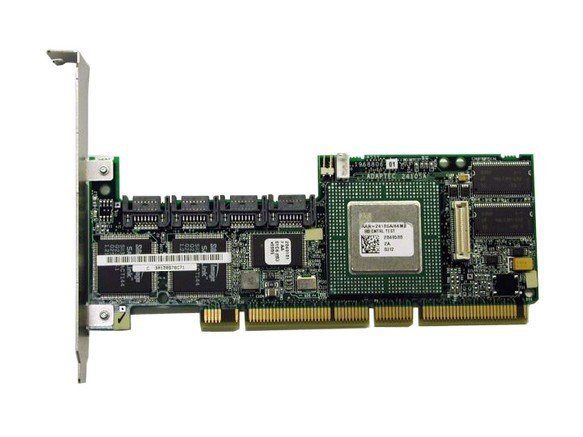

IBM ServeRAID 7t SATA Controller (71P8648)
This SATA RAID controller option provides an attractively priced solution for entry level IBM eServer xSeries SATA-based servers. It supports RAID levels 0, 1, 10 and 5, and provides PCI 64-bit, 66MHz performance. This intelligent four-port SATA controller is a universal PCI card with a dedicated I/O processor, executing the RAID algorithms. Install this SATA RAID controller option in your entry xSeries SATA based servers for economical, RAID-protected, data-storage solutions. ServeRAID Manager software, used with other IBM ServeRAID controllers, provides investment protection and ease-of-use by minimizing the need for additional training of IT staff and can help lower the total cost of ownership to manage and control large numbers of ServeRAID-protected, xSeries servers deployed throughout the enterprise.
Type: Storage Controller, Plug-In Card
Interface Type Supported: ServeRAID-6M Controller
Transfer Rate: 150MBps
Buffer Size: 64 MB
Channel Quanity: 4
Maximum Storage Devices: 4
Raid Level: RAID 0, RAID 1, RAID 5, RAID 10
HD Bus: PCI
HD Controller: Serial-ATA
Data Bus: 64-bit
Specs
Features
Warranty
Key Specifications IBM ServerRAID-7t SATA RAID Controller
Manufacturer IBM
Manufacturer Part # 71P8648
Device Type Controller
Form Factor Internal
RAID Level 0, 1, 5 and 10
Performance PCI 64-bit, 66MHz
Cache 64MB SDRAM
Weight Unit 0.4 lbs
System Requirements PC Windows
Warranty 1 Year
